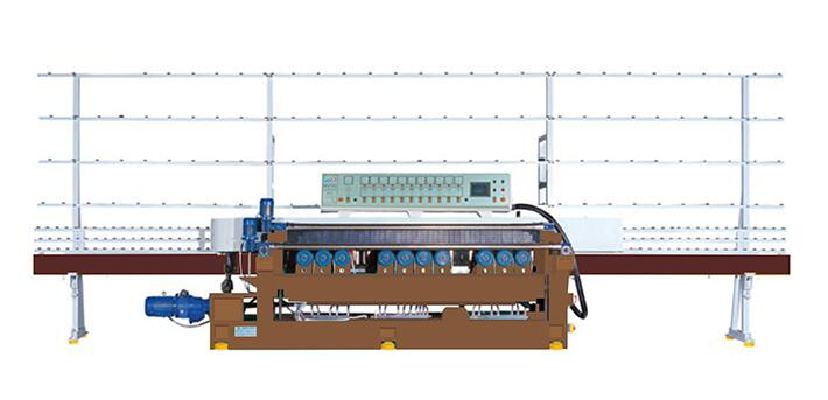

The machine adopts PLC interface control, lift the front rail, more adapted to adjust grinding small pieces of glass. The machine uses a large short pitch roller chain Fu movable platens, grinding ABB motor with high precision, low power consumption, high stability, PLC precise control of the width of the bevel, high degree of automation, and the use of belt conveyor. Mainly used for grinding glass hypotenuse. Hypotenuse multiple combinations. Grinding and polishing and grinding bottom finishing at one time. Having a high efficiency, good quality and stable performance, easy operation and low loss characteristics.

  Technical Parameters

Speed range: 0.5 ~ 4m / min

The minimum processing size: 25mmX25mm (minimum glass processing can be customized according to customer requirements size 15mmX15mm)

Glass thickness: 4mm ~ 12mm

Maximum bevel width: 50mm

Bevel angle: 0 ° ~ 25 °

Total power: 22.5KW

Dimensions: 7.6mX1.2mX2.6m total weight: 5000kg
